Builder & Multi Functional Hoist Solutions

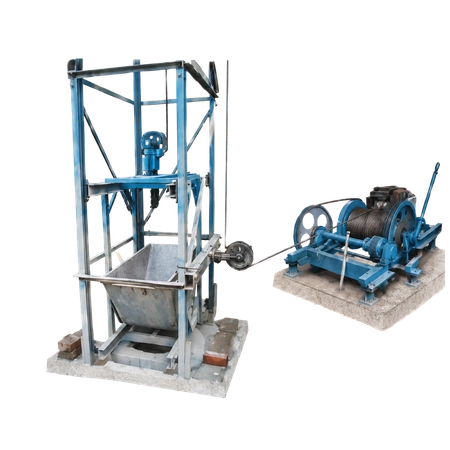

Builder Hoist is a heavy-duty material lifting solution designed for efficient vertical transportation at construction sites. With a lifting capacity of 1000 kg and a maximum height of 130 meters, it ensures smooth and reliable performance for handling construction materials. Manufactured using a strong MS bucket and durable steel structure, it offers long service life, stable operation, and enhanced safety. Its powerful 15 HP motor and sturdy wire rope system support consistent and efficient lifting operations.
| Parameter | Specification |
| Capacity | 1000 kg |
| Bucket | 10 Guage MS Sheet |
| Size of Channel | 50x100x50 mm |
| Size of Angle | 40x40x5 mm |
| Max Height | 130 mtr |
| Wire Rope | 14 mm |
| Motor Power | 15 HP |
| Breaking System | Manual |
| Wire Rope Length | 10 mm - 50 mtr |

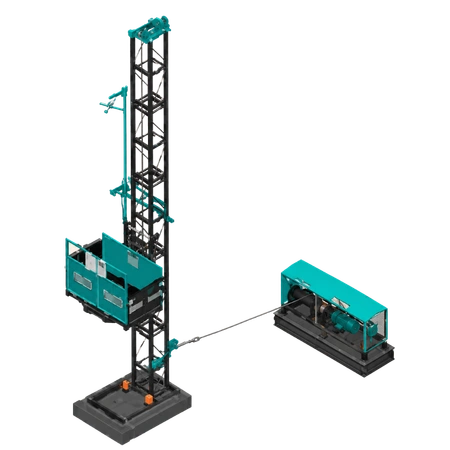

Multi Functional Hoist is a high-performance lifting solution designed for efficient material handling at construction sites. Available in 1000 kg and 1500 kg capacities, it offers reliable lifting with a maximum height of 120 meters and a speed of 30 m/min. Equipped with a powerful electric motor, electromagnetic brake system, tilting bucket, and rebar carrier support, it ensures safe operation, improved productivity, and smooth vertical transportation of construction materials.
| Parameter | Specification |
| Capacity | 1000kg / 1500kg |
| Net Load | 750kg / 1200kg |
| Wire Rope | 12mm |
| Electric Motor | 10hp / 12.5hp |
| Break Motor | Yes Electromagnetic Break |
| Speed | 30m/min |
| Max Height | 120mtr |
| Tilting Bucket | 1 Ton / 1.5 Ton |
| Rebar Carrier | 7mtr Long & Max. 500kg Net Load |
