Stirrup Bender Machine

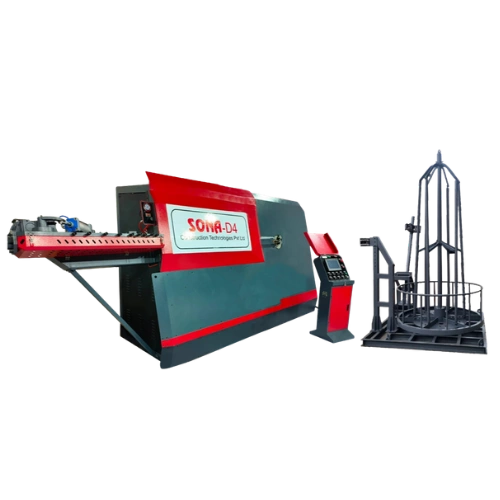

Automatic Rebar Bending Machine is a high-speed and precision steel processing solution designed for automatic feeding and accurate bending operations. Supporting single and double line bending capacities, it delivers fast production with stable performance and reduced material handling. Equipped with powerful feeding and bending motors, this machine improves efficiency, ensures consistent bending accuracy, and is ideal for modern construction and fabrication applications.
| Bending Capacity Single Line | (ub≤450MPa) 4-10 mm Single Side Bending |
| Bending Capacity Double Line | (ub≤450MPa) 4-8 mm Single Side Bending |
| Input Voltage | 380V/415V |
| Max Feeding Speed | 70m/min |
| Bending Speed | 1000°/sec |
| Feeding Motor | 9.5kW 3.7kW |
| Bending Motor | 6kW/h |
| Average/Total Power | 3650x1100x1 |
| Overall Dimension(mm) | 900mm |
| Net Weight | 1900kg |
| Max Traction speed | 80m/min |

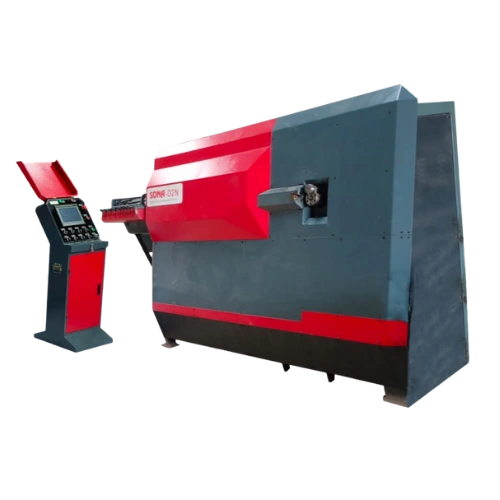

Automatic Double Wire Rebar Bending Machine is a high-speed and precision steel processing solution designed for efficient stirrup and rebar bending applications. Supporting bi-directional bending with excellent angle and length accuracy, it delivers fast production and consistent output. Equipped with powerful traction, bending, cutting, and feeding motors, this machine reduces labor requirements, improves productivity, and ensures reliable performance for large-scale construction projects.
| Double wire bending | 5-10mm |
| Max. Bending Angle | ±180° |
| Max. Length of Stirrup Side | 1000mm |
| Min. Length of Stirrup Side | 50mm |
| Max. Bending Speed | 1100°/sec |
| Max. Traction Speed | 100m/min |
| Bending Direction | Bi-Direction |
| Traction Motor | 22kW |
| Bending Motor | 7.5kW |
| Cutting Motor | 3.75kW |
| Feeding Motor | 1.5kW |
| Air Compressor | 4kW |
| Length Tolerance | ±1mm |
| Bending Tolerance | ±1° |
| Average Electric Power Consumption | 6kW/h |
| Voltage | 380V-50Hz-3P |
| Machine Net Weight | 2300kg |
| Overall Machine Weight | 3100kg (with 2X Pay off and 1 air compressor) |
| Working Environmental Temperature | -5°C to 40°C |
| LXWXH | 4800*1400*2200mm |
